電磁離合剎車器組當前位置：首頁 > 電磁離合剎車器組
- 對軸型電磁離合制動器組 品牌：臺灣天機
型號：TJ-POA
扭矩：6~400Nm
電壓：DC24V
包裝：紙箱
類型：對軸型電磁離合制動器組（內藏式）
訂購熱線：13316607853
商品介紹
【天機傳動】該電磁離合剎車器組（內藏式TJ-POA）為對軸型，是將干式電磁離合器（TJ-A1型）及干式電磁剎車器（TJ-B1）裝置在輕合金外殼內，組成防滴型、分軸式離合制動器組合。用途：起動、停止、高頻運轉、寸動定位等。特點：性能穩定、耐用、可高頻度工作、動作寧靜、安裝操作簡單。構造簡單，使用優越的非石棉來令片（高級摩擦材質），進口軸承，耐磨耗性優越、使用壽命長。對軸對構造，無空轉轉矩與寬幅變速皮帶輪組合方便。

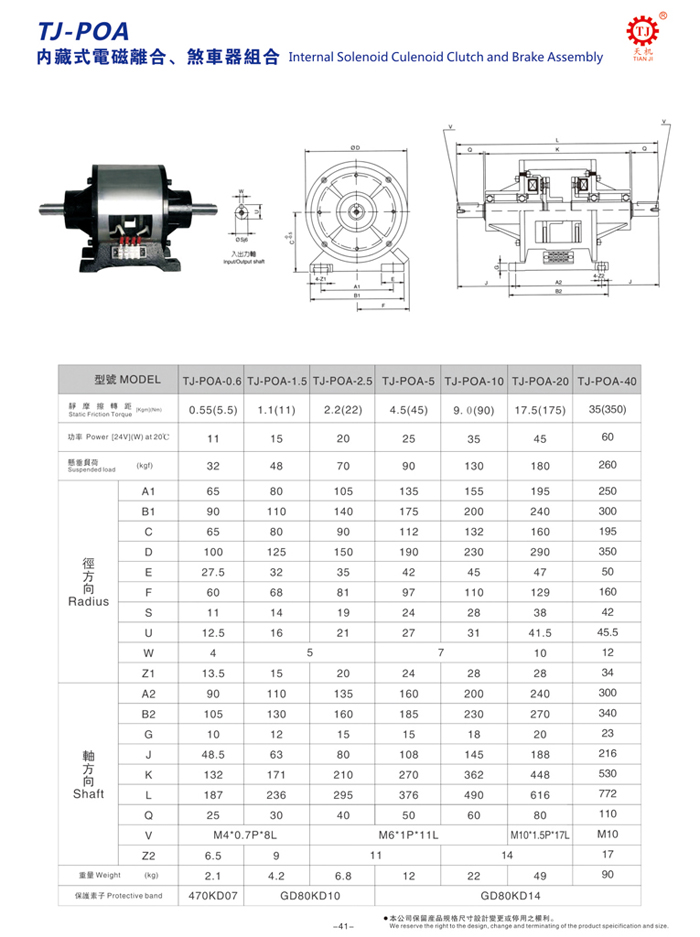

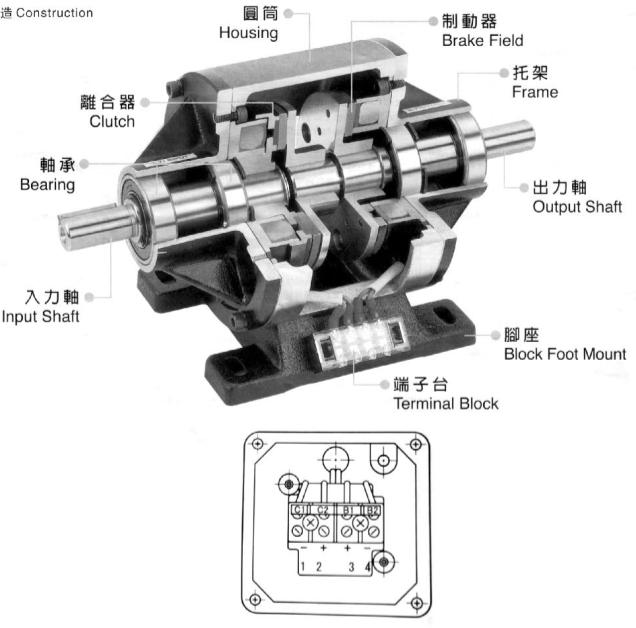

對軸型電磁離合制動器組工作原理：電磁離合器之轉子被固定于入軸上，離合器之電樞與電磁制動器器則在同軸而形成的出力軸，離合器之軛與電磁制動器裝置于機架上。當電磁離合器接通電流時，出力軸即被帶動電磁離合器分離，當電磁制動器接通電流時，出力軸就停止運轉。對軸型電磁離合制動器組安裝尺寸規格如下：
