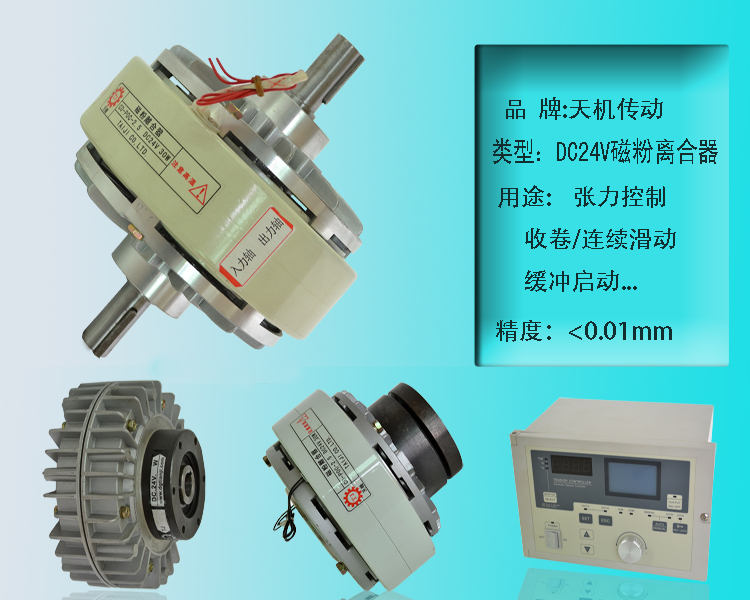

- 內殼旋轉磁粉離合器（中空軸TJ-POC-B） 品牌：臺灣天機
型號：TJ-POC-B
扭矩：6~400Nm
電壓：DC24V
包裝：紙箱

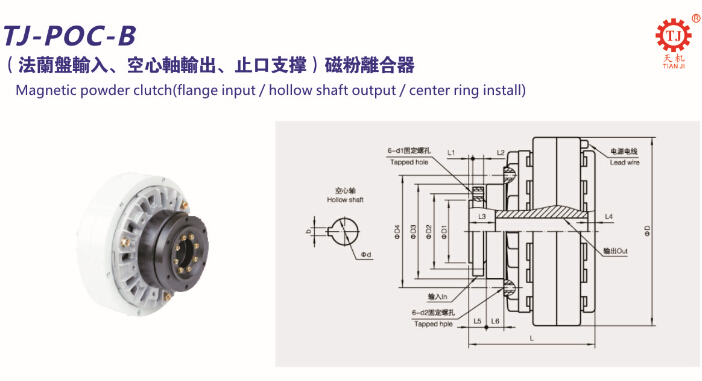

類型：空心軸磁粉離合器（法蘭輸入、空心軸輸出、止口支撐、內殼旋轉）
臺灣天機（TJ-POC-B）中空軸磁粉離合器法蘭輸入、空心軸輸出、止口支撐、內殼旋轉，采用DC24V，進口軸承、磁粉，精度小于0.01mm。天機傳動率先通過ISO9001:2008標準質量管理系統認證，建立完善的質量管理體質、服務體系。天機傳動成立至今，一直專注于工業領域?qū)Ｓ玫拇欧垭x合器/制動器及電磁離合器/制動器等系列傳動設備的研發、設計、生產。
空心軸磁粉離合器利用連結時的圓滑特性及定轉矩特性之緩沖效果，即加速度一定及不發生沖擊的尖峰轉矩。用途包括連續滑動、張力控制用、轉矩限制器用、高速應答用、動力吸收用、定位停止用、模擬負載用等多用途。

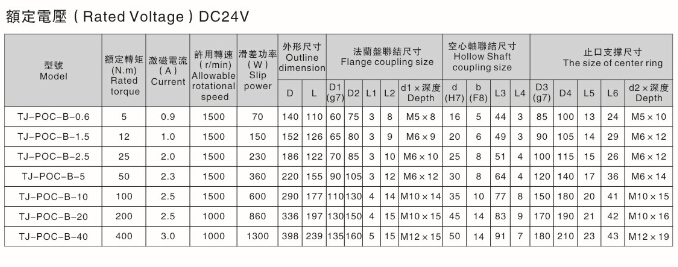

該型空心軸磁粉離合器常規型號有6KG、15KG、25KG、50KG、100KG、200KG、400KG等七個型號。工作原理：當將線圈磁通時，由于磁力的作用產生硬化現象，而吸引磁粉，連續滑動之間會從離合器傳達轉矩，當斷電電流時，側停止運轉（傳遞轉矩）。
